“Tool-in-lesion” Accuracy of Galaxy System

A Robotic Electromagnetic Navigation Bronchoscopy With
Integrated Tool-in-lesion-Tomosynthesis Technology”


J Bronchol Intervent Pulmonol. April 2023; Bhadra, Krish MD; Rickman, Otis B. DO; Mahajan, Amit K. MD; Hogarth, Douglas Kyle MD


Background: Robotic navigational platforms have seen increased interest for peripheral lung lesion biopsy due to superior stability, articulation and visualization over traditional catheters. Up until this point, incorporating tomosynthesis for real-time lesion updates required introducing other technologies into the procedure.

The Challenge: Current robotic platforms are prone to CT-to-body divergence which can lead to low diagnostic yield and require advanced supplemental imaging to overcome.

Study Purpose: This study aims to assess the tool-in-lesion accuracy of Galaxy’s TiLT Technology™ in peripheral lung nodules confirmed by CBCT.

Methods: A porcine model was used (n=4) and simulated lung nodules were placed (n=20). Each physician (n=4)
navigated with the Galaxy System™ to a lesion (avg of 5 lesions apiece), performed a TiLT sweep, adjusted the scope tip and placed the tool in the lesion. TiLT was then used to confirm the tool was in the lesion. A CBCT image was then taken, and used to confirm the tool-in-lesion accuracy for each lesion.

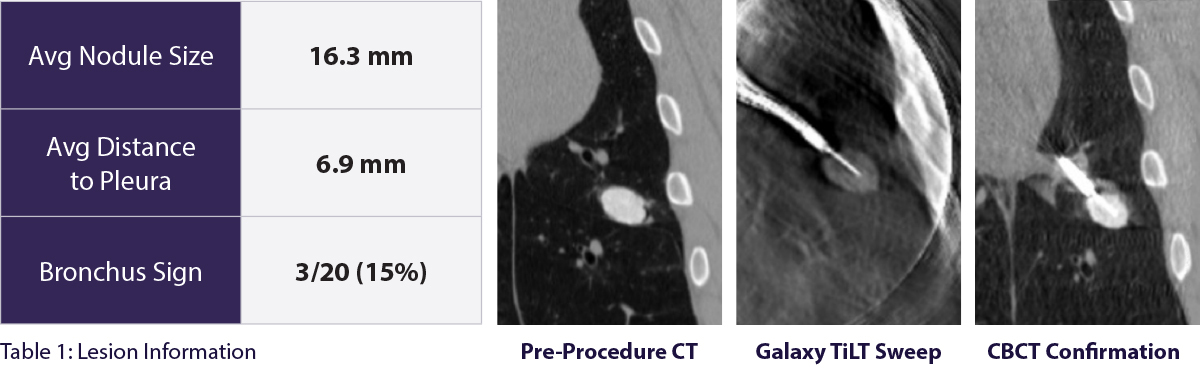

Noah_MATCH_Table_+TiLT_Sweep_Confirm_1200x378pxl (1)



Successful Navigation to Lesion

Diagnostic Yield

Tool-in-Lesion Rate*

Conclusions: The Galaxy System and its TiLT Technology were able to achieve 95% tool-in-lesion as confirmed by CBCT. Successful diagnostic yield was achieved in 100% of lesions


*5% tool-touch-lesion
